Programming Assignment 1: Percolation
Write a program to estimate the value of the percolation threshold via Monte Carlo simulation.
Install a Java programming environment. Install a Java programming environment on your computer by following these stepbystep instructions for your operating system [ Mac OS X ∙ Windows ∙ Linux ]. After following these instructions you will have stdlib.jar and algs4.jar in your Java classpath: the former contains libraries for reading data from standard input, writing data to standard output, drawing results to standard draw, generating random numbers, computing statistics, and timing programs; the latter contains all of the algorithms in the textbook.
Percolation. Given a composite systems comprised of randomly distributed insulating and metallic materials: what fraction of the materials need to be metallic so that the composite system is an electrical conductor? Given a porous landscape with water on the surface (or oil below), under what conditions will the water be able to drain through to the bottom (or the oil to gush through to the surface)? Scientists have defined an abstract process known as percolation to model such situations.

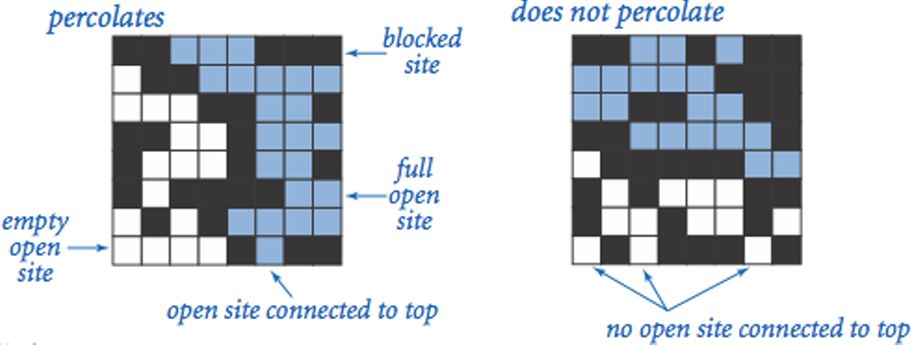

The model. We model a percolation system using an NbyN grid of sites. Each site is either open or blocked. A full site is an open site that can be connected to an open site in the top row via a chain of neighboring (left, right, up, down) open sites. We say the system percolates if there is a full site in the bottom row. In other words, a system percolates if we fill all open sites connected to the top row and that process fills some open site on the bottom row. (For the insulating/metallic materials example, the open sites correspond to metallic materials, so that a system that percolates has a metallic path from top to bottom, with full sites conducting. For the porous substance example, the open sites correspond to empty space through which water might flow, so that a system that percolates lets water fill open sites, flowing from top to bottom.)

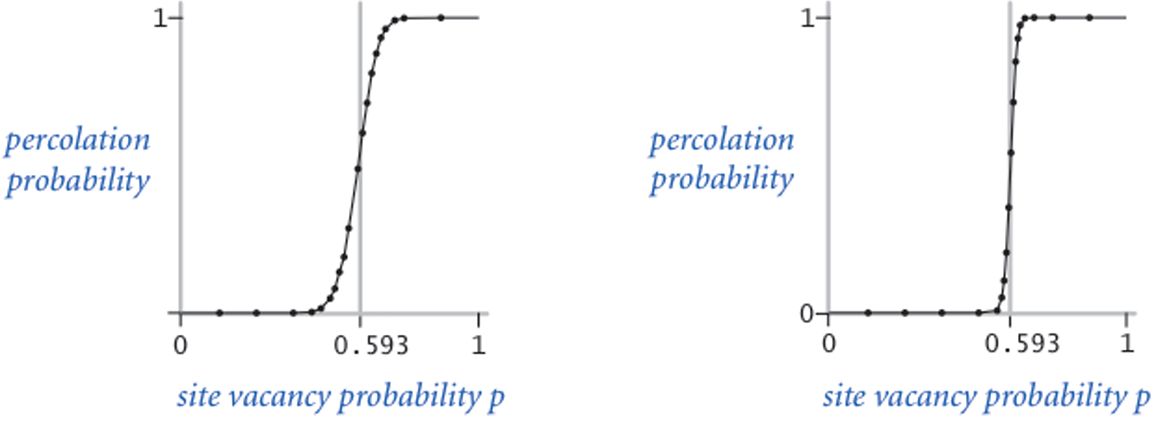

The problem. In a famous scientific problem, researchers are interested in the following question: if sites are independently set to be open with probability p (and therefore blocked with probability 1 − p), what is the probability that the system percolates? When p equals 0, the system does not percolate; when p equals 1, the system percolates. The plots below show the site vacancy probability p versus the percolation probability for 20by20 random grid (left) and 100by100 random grid (right).
When N is sufficiently large, there is a threshold value p such that when p < p a random NbyN grid almost never percolates, and when p > p, a random NbyN grid almost always percolates. No mathematical solution for determining the percolation threshold p has yet been derived. Your task is to write a computer program to estimate p*.
Percolation data type. To model a percolation system, create a data type Percolation with the following API:
public class Percolation {
public Percolation(int N) // create N-by-N grid, with all sites blocked
public void open(int i, int j) // open site (row i, column j) if it is not already
public boolean isOpen(int i, int j) // is site (row i, column j) open?
public boolean isFull(int i, int j) // is site (row i, column j) full?
public boolean percolates() // does the system percolate?
}
By convention, the indices i and j are integers between 1 and N, where (1, 1) is the upperleft site: Throw a java.lang.IndexOutOfBoundsException if either i or j is outside this range. The constructor should take time proportional to N^2; all methods should take constant time plus a constant number of calls to the unionfind methods union(), find(), connected(), and count().
Monte Carlo simulation. To estimate the percolation threshold, consider the following computational experiment:
- Initialize all sites to be blocked.
- Repeat the following until the system percolates:
- Choose a site (row i, column j) uniformly at random among all blocked sites.
- Open the site (row i, column j).
- The fraction of sites that are opened when the system percolates provides an estimate of the percolation threshold.
For example, if sites are opened in a 20by20 lattice according to the snapshots below, then our estimate of the percolation threshold is 204/400 = 0.51 because the system percolates when the 204th site is opened.

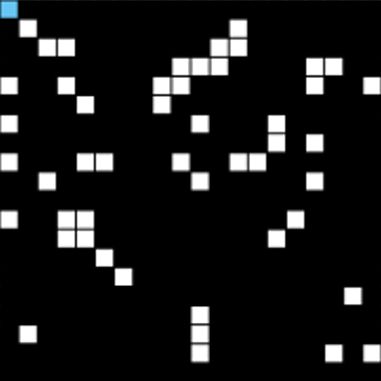

50 open sites

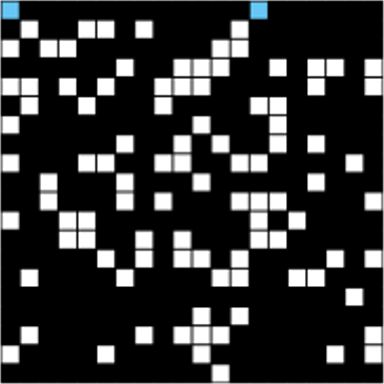

100 open sites

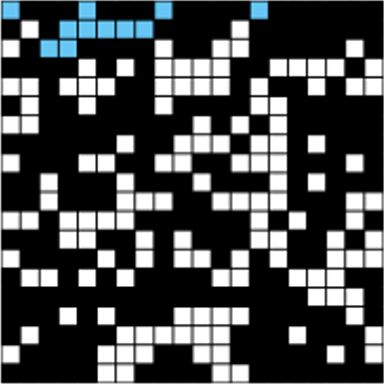

150 open sites

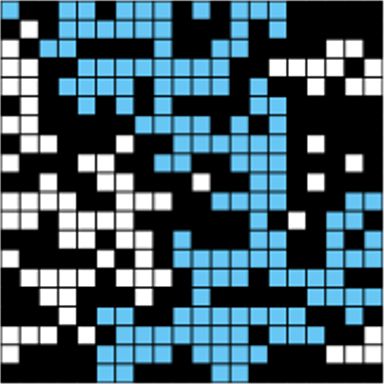

204 open sites
By repeating this computation experiment T times and averaging the results, we obtain a more accurate estimate of the percolation threshold. Let xt be the fraction of open sites in computational experiment t. The sample mean μ provides an estimate of the percolation threshold; the sample standard deviation σ measures the sharpness of the threshold.
Assuming T is sufficiently large (say, at least 30), the following provides a 95% confidence interval for the percolation threshold:
To perform a series of computational experiments, create a data type PercolationStats with the following API.
public class PercolationStats {
public PercolationStats(int N, int T) // perform T independent computational experiments on an N-by-N grid
public double mean()
// sample mean of percolation threshold
public double stddev()
public double confidenceLo()
public double confidenceHi()
// sample standard deviation of percolation threshold
// returns lower bound of the 95% confidence interval
// returns upper bound of the 95% confidence interval
public static void main(String[] args) // test client, described below
}
The constructor should throw a java.lang.IllegalArgumentException if either N ≤ 0 or T ≤ 0.
Also, include a main() method that takes two commandline arguments N and T, performs T independent computational experiments (discussed above) on an NbyN grid, and prints out the mean, standard deviation, and the 95% confidence interval for the percolation threshold. Use standard random from our standard libraries to generate random numbers; use standard statistics to compute the sample mean and standard deviation.
% java PercolationStats 200 100
mean
= 0.5929934999999997
stddev
= 0.00876990421552567
95% confidence interval = 0.5912745987737567, 0.5947124012262428
% java PercolationStats 200 100
mean
= 0.592877
stddev
= 0.009990523717073799
95% confidence interval = 0.5909188573514536, 0.5948351426485464
% java PercolationStats 2 10000
mean
= 0.666925
stddev
= 0.11776536521033558
95% confidence interval = 0.6646167988418774, 0.6692332011581226
% java PercolationStats 2 100000
mean
= 0.6669475
stddev
= 0.11775205263262094
95% confidence interval = 0.666217665216461, 0.6676773347835391
Analysis of running time and memory usage (optional and not graded). Implement the Percolation data type using the quickfind algorithm QuickFindUF.java from algs4.jar.
- Use the stopwatch data type from our standard library to measure the total running time of PercolationStats. How does doubling N affect the total running time? How does doubling T affect the total running time? Give a formula (using tilde notation) of the total running time on your computer (in seconds) as a single function of both N and T.
- Using the 64bit memorycost model from lecture, give the total memory usage in bytes (using tilde notation) that an NbyN percolation system uses. Count all memory that is used, including memory for the unionfind data structure.
Now, implement the Percolation data type using the weighted quickunion algorithm WeightedQuickUnionUF.java from algs4.jar. Answer the questions in the previous paragraph.
Deliverables. Submit only Percolation.java (using the weighted quickunion algorithm as implemented in the WeightedQuickUnionUF class) and PercolationStats.java. We will supply stdlib.jar and WeightedQuickUnionUF. Your submission may not call any library functions other than those in java.lang, stdlib.jar, and WeightedQuickUnionUF.
This assignment was developed by Bob Sedgewick and Kevin Wayne. Copyright © 2008.
Formulas extracted from original pdf, then converted to laTex with https://github.com/copilot, then back to png with https://latex2png.com/
