Overview

Test Pyramid Overview

This project follows the Test Pyramid approach: the majority of tests are fast, isolated unit tests, supported by a smaller number of integration tests, and a small set of high-value end-to-end (E2E) / API tests. This keeps feedback fast while still giving confidence that the full application works correctly when deployed and accessed via HTTP.

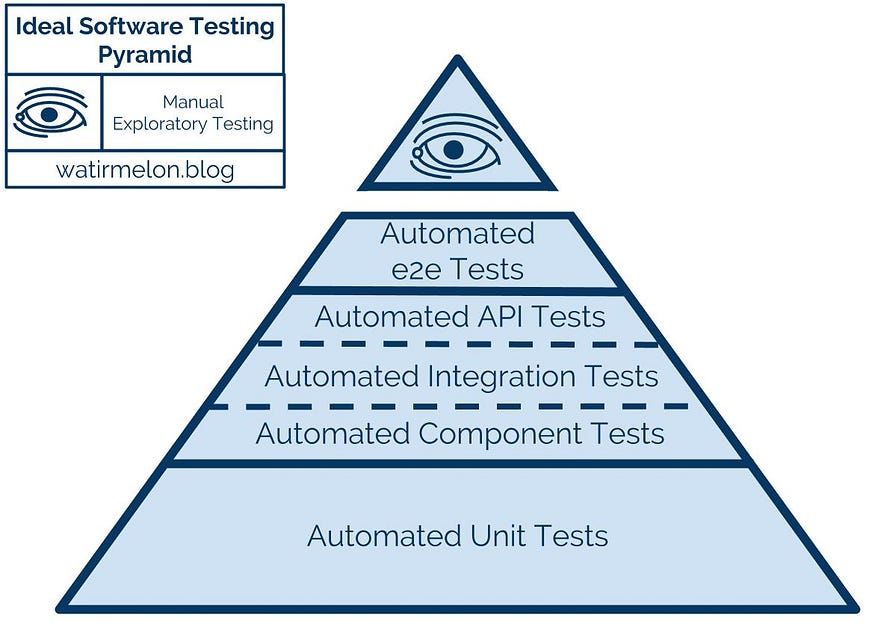

Test Pyramid

Unit Tests (base of the pyramid)

Unit tests focus on individual classes (typically service-layer logic) in isolation using JUnit 5 and Mockito. Dependencies such as repositories are mocked so that tests execute quickly and fail only when the unit’s business logic is incorrect. These tests provide the bulk of coverage and fast feedback during development.

Unit test suite(s) in this project:

  • src/test/java/edu/tus/guitarstore/service/GuitarServiceTest.java
    Service-layer unit tests using Mockito to mock repository dependencies and verify service behaviour in isolation.
  • src/test/java/edu/tus/guitarstore/GuitarAppTests.java
    Spring Boot context smoke test (contextLoads()) that verifies the application starts successfully under @SpringBootTest (no HTTP assertions).

Go To Unit Tests

Integration Tests (middle of the pyramid)

Integration tests verify that multiple components work together, typically including the database layer (e.g., JPA repositories and entity mappings) using a real H2 test database. These tests ensure persistence, mappings, constraints, and repository queries behave as expected in a realistic environment.

Integration test suite(s) in this project:

  • src/test/java/edu/tus/guitarstore/repository/GuitarRepositoryIntegrationTest.java
    Repository-level integration tests that verify Spring Data JPA queries and persistence against the test database.
  • src/test/java/edu/tus/guitarstore/repository/GuitarRepositoryTest.java
    Additional repository tests that validate CRUD/query behaviour and entity mapping assumptions.
  • src/test/java/edu/tus/guitarstore/config/TestJpaAuditingConfig.java
    Test-only configuration to supply auditing context (e.g., AuditorAware) required by JPA auditing fields during integration/E2E tests.

Go To Integration Tests

End-to-End / API Tests (top of the pyramid)

A small number of E2E tests validate the system from an external client perspective by calling the REST API over HTTP. Two complementary approaches are used:

  • JUnit + TestRestTemplate (@SpringBootTest(webEnvironment = RANDOM_PORT)) to start the application in the test runtime and verify real controller/service/repository/DB behaviour.
  • Karate feature tests against http://localhost:8080 for readable, scenario-based API checks (happy path, validation failures, not-found responses, and simple lifecycle flows such as create→delete→verify). These tests provide high confidence in the complete request/response flow but are intentionally fewer in number because they are slower and more environment-dependent.

End-to-end test suite(s) in this project:

  • src/test/java/edu/tus/guitarstore/e2e/GuitarApiE2ETest.java
    JUnit-based E2E tests that start the full Spring Boot application and exercise REST endpoints via HTTP.
  • src/test/java/edu/tus/guitarstore/karate/BrandKarateTest.java and src/test/java/edu/tus/guitarstore/karate/brands.feature
    Karate-based black-box API tests for the Brand endpoints, executed against a locally running app on http://localhost:8080.

Go To E2E Tests
