CI/CD Pipeline Architecture

The Pipeline

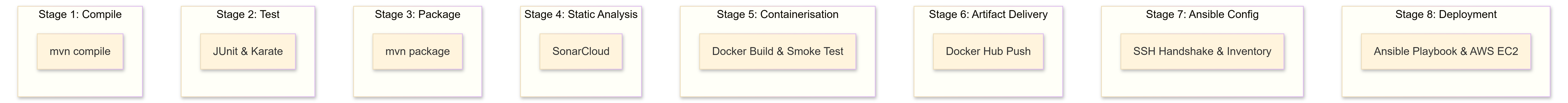

Figure 1. Build Pipeline

The pipeline is architected into eight distinct stages to provide clear separation of concerns. This ensures that if a build fails during Stage 4 (Static Analysis), the subsequent containerisation and deployment stages are blocked, preserving the integrity of the production environment.

🚀 CI/CD Pipeline

This project utilizes a fully automated Declarative Jenkins Pipeline to manage the lifecycle of the Guitar Store API.

Status	Stage	Description
✅	CI	Maven Build, JUnit Testing, & SonarCloud Analysis
✅	CD	Docker Hub Delivery & Ansible Orchestration
🌐	Live	Automated Deployment to AWS EC2

Pipeline Stages

Stage 1: Compile (Bitbucket & Maven)

Jenkins monitors the Bitbucket repository and pulls the latest source code from the cbd-ca2 branch upon detecting a commit. Maven then validates the project structure and compiles the Java 21 source code to ensure the application is syntactically correct before testing.

Configuration: Source Code Management (SCM) uses the Bitbucket repository URL with the branch specifier */cbd-ca2.

Stage 2: Test (JUnit & Karate)

The pipeline executes a suite of 43 automated tests, including JUnit for internal business logic and Karate for BDD-style API integration. The pipeline is configured with a "fail-fast" logic; if any test fails, the build stops immediately to prevent broken code from reaching production.

Configuration: Maven goal mvn test is used, with results parsed by the Jenkins JUnit plugin from the target/surefire-reports directory.

Stage 3: Package (Maven)

Once verified by tests, Maven packages the compiled code into a single, executable .jar file. This creates a portable artifact containing the entire Spring Boot application, ready for containerisation.

Configuration: The mvn package -DskipTests -Dcheckstyle.skip command generates guitar-store-api-0.0.1-SNAPSHOT.jar in the target folder.

Stage 4: Static Analysis (SonarCloud & Checkstyle)

This stage implements Continuous Inspection by triggering a SonarScanner process. The code is uploaded to SonarCloud to check for bugs, vulnerabilities, and "code smells," while Checkstyle enforces strict formatting standards.

Configuration: Uses the sonar:sonar goal with a secure authentication token stored in Jenkins Credentials.

Stage 5: Containerisation (Docker)

A multi-stage Docker build packages the JAR into a slim, production-ready image using a JRE-only base to minimize the security attack surface. A trial run is performed within the pipeline as a "smoke test" to ensure the container is responsive before delivery.

Configuration: Executes a batch command: docker build -t joe0regan/guitar-store-api:latest ..

Stage 6: Artifact Delivery (Docker Hub)

The verified Docker image is tagged and pushed to a central repository on Docker Hub. This transforms the image into an immutable artifact that can be pulled by any authorized server in the network.

Configuration: Uses docker login with masked Jenkins credentials (DOCKER_USER, DOCKER_PASS) followed by docker push.

Stage 7: Ansible Configuration

Jenkins securely transmits the deployment blueprints—specifically the Ansible Playbook (deploy-guitar-api.yml) and the Dockerfile—to the Ansible Control Node via SSH. This decouples the build environment from the deployment orchestration logic.

Configuration: The "Publish over SSH" plugin transfers files to /opt/docker on the Ansible EC2 instance using the ansadmin service user.

Stage 8: Deployment (AWS EC2)

The final stage triggers the automated deployment on the target AWS Docker Host. Jenkins sends a remote command to Ansible, which executes a "Stop, Remove, Pull, and Run" sequence to ensure the latest version of the API is live on port 8080.

Configuration: Exec command: ansible-playbook -i /etc/ansible/hosts /opt/docker/deploy-guitar-api.yml.

Detailed Diagram

Jenkins Pipeline

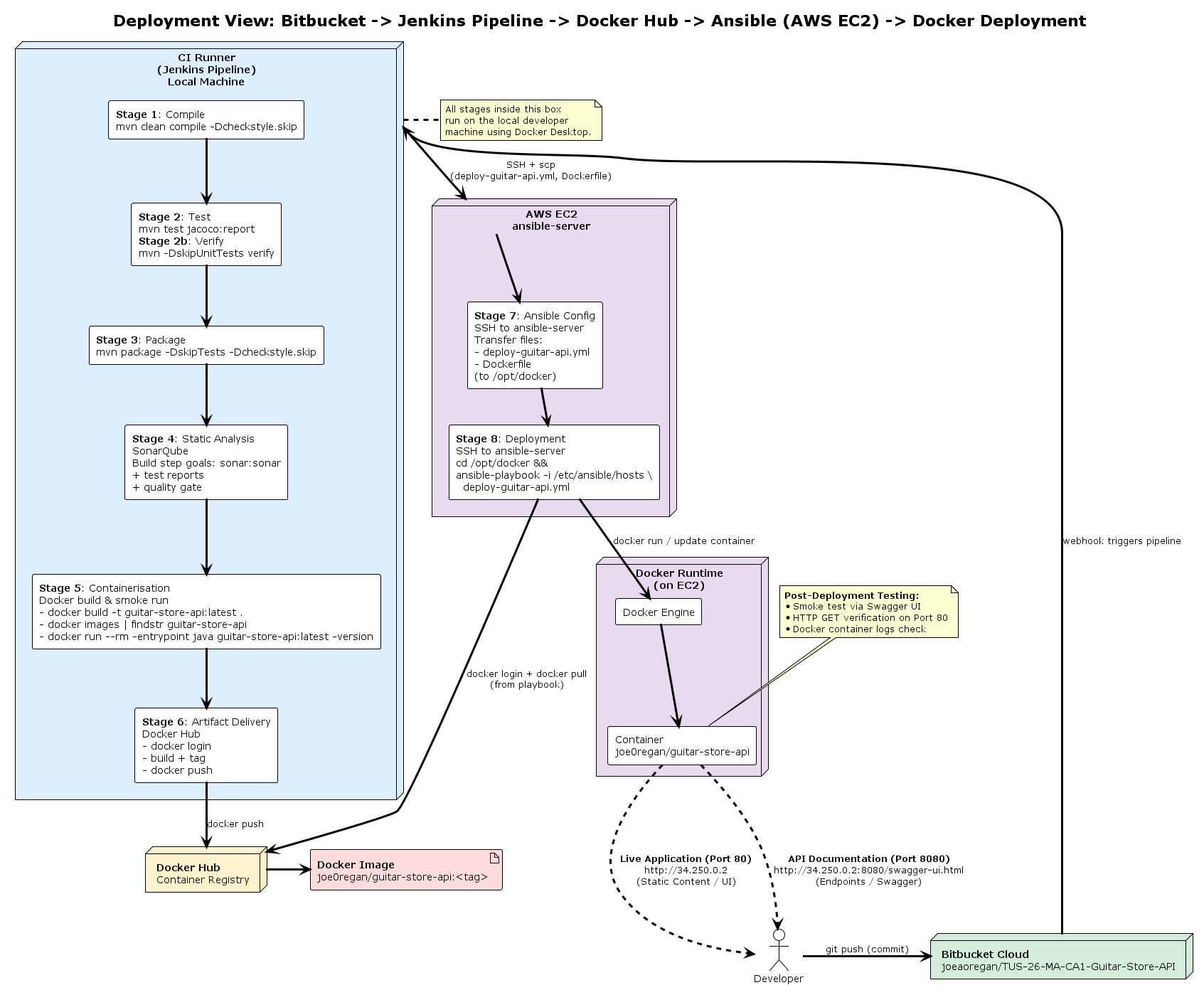

Figure 2. Detailed Jenkins Pipeline Diagram

GitHub Actions Pipeline

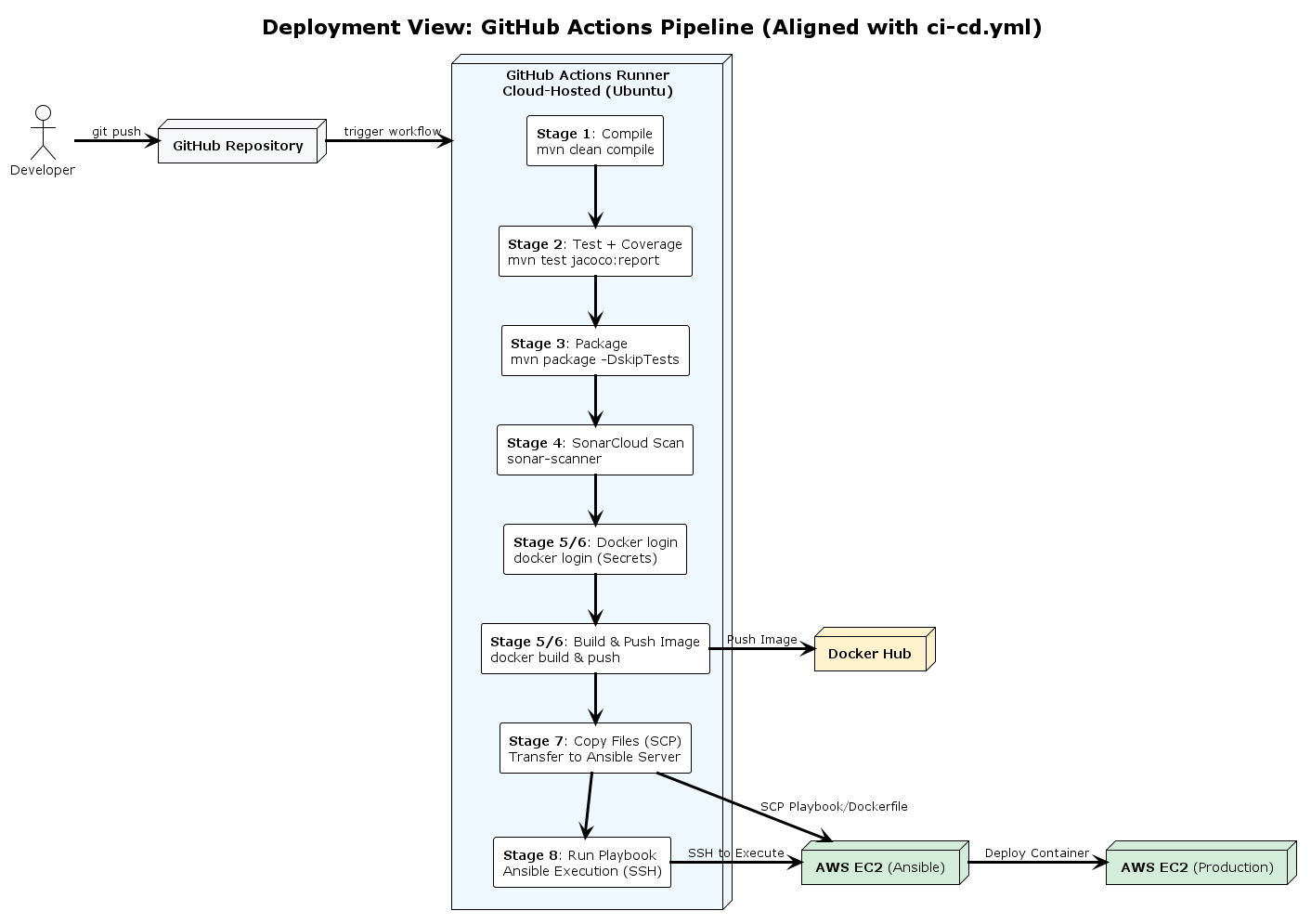

Figure 3. Detailed GitHub Actions Pipeline Diagram
