RESTful API Lab 7

Steps and Files

Part#1 GlobalExceptionHandler

1. Handle All Exceptions
- GlobalExceptionHandler
- AccountController
2. Test Using the Exception

Part#2 Validating the input data

1. Dependencies
- pom.xml
2. CustomerDto validations
- dto/CustomerDto.java
3. AccountsDto validations
- dto/AccountsDto.java
4. @Validated
- controller/AccountController.java
5. @Valid
- controller/AccountsController.java
6. @Pattern
- controller/AccountController.java
7. GlobalExceptionHandler extends ResponseEntityExceptionHandler
- exception/GlobalExceptionHandler.java
8. GlobalExceptionHandler handleMethodArgumentNotValid
- exception/GlobalExceptionHandler.java
9. Test email and mobile number

Part#3 Completing the audit metadata

1. BaseEntity Annotation
2. AuditAwareImpl
3. BaseEntity Annotations
4. JpaAuditing Annotation
5. Delete Manually Created Fields
6. Test in Postman

---

Lab#7 Exceptions , Data Validations and Audit Columns

---

In this lab we will complete the RESTful API CRUD actions by adding the Update and Delete parts.

Part 1 GlobalExceptionHandler

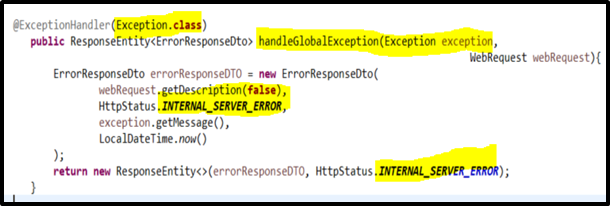

Handle All Exceptions

Currently we are only handling two exceptions here. We add a new method that handles all types of exceptions. (e,g runtime expections). To test this exception, delete the @AllArgsConstructor from the AccountController class.With only the default constructor,autowiring will not happen and the the AccountsService will be null.

    @ExceptionHandler(Exception.class)
    public ResponseEntity<ErrorResponseDto> handleGlobalException(Exception exception, WebRequest webRequest) {
        ErrorResponseDto errorResponseDTO = new ErrorResponseDto(
            webRequest.getDescription(false),
            HttpStatus.INTERNAL_SERVER_ERROR,
            exception.getMessage(),
            LocalDateTime.now());
        return new ResponseEntity<>(errorResponseDTO, HttpStatus.INTERNAL_SERVER_ERROR);
    }

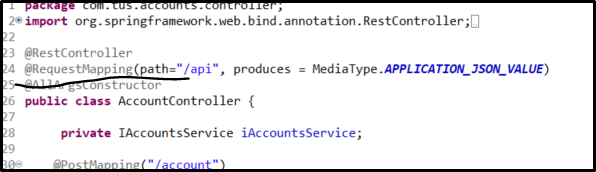

@RestController
@RequestMapping(path = "/api/accounts", produces = MediaType.APPLICATION_JSON_VALUE)
//@AllArgsConstructor
@Validated
public class AccountController {

    private IAccountsService iAccountsService;

Test Using the Exception

Test using the exception.

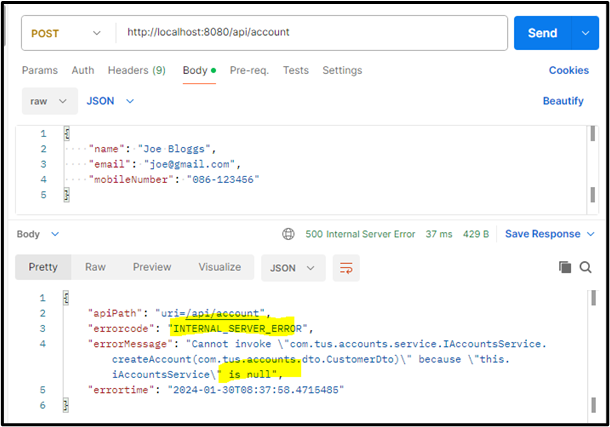

Figure 1. Test Exception in Postman.

---

Note:- Put the @AllArgsConstructor back in.

---

Part#2 Validating the input data

Dependencies

1. We need to validate the data we are receiving from the user. Make sure the relevant dependency is in the pom.xml .

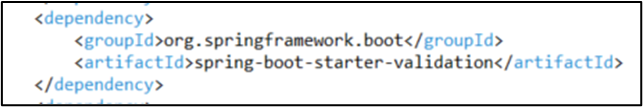

Validate Data: pom.xml

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-validation</artifactId>
</dependency>

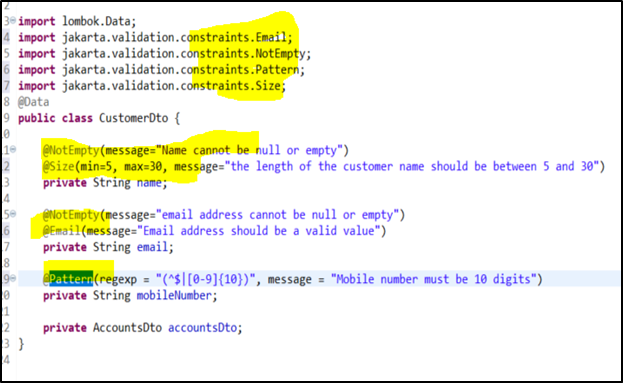

CustomerDto validations

1. Now go to the Dto classes – Customer Dto and add validations

package com.tus.accounts.dto;

import jakarta.validation.Valid;
import jakarta.validation.constraints.Email;
import jakarta.validation.constraints.NotEmpty;
import jakarta.validation.constraints.Pattern;
import jakarta.validation.constraints.Size;
import lombok.Data;

@Data
public class CustomerDto {

    @NotEmpty(message = "Name cannot be null or empty")
    @Size(min = 5, max = 30, message = "the length of the customer name should be between 5 and 30")
    private String name;

    @NotEmpty(message = "email address cannot be null or empty")
    @Email(message = "Email adderess should be a valid value")
    private String email;

    @Pattern(regexp = "(^$|[0-9]{10})", message = "Mobile number must be 10 digits")
    private String mobileNumber;

    @Valid
    private AccountsDto accountsDto;
}

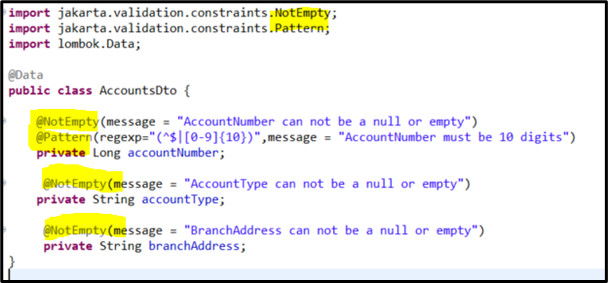

AccountsDto validations

1. Similarly add validations in the AccountsDto

package com.tus.accounts.dto;

import jakarta.validation.constraints.Max;
import jakarta.validation.constraints.Min;
import jakarta.validation.constraints.NotEmpty;
import jakarta.validation.constraints.NotNull;
import lombok.Data;

@Data
public class AccountsDto {
    @NotNull(message = "AccountNumber cannot be null")
    @Min(value = 1000000000L, message = "AccountNumber must be 10 digits")
    @Max(value = 9999999999L, message = "AccountNumber must be 10 digits")
    private Long accountNumber;

    @NotEmpty(message = "AccountType cannot be null or empty")
    private String accountType;

    @NotEmpty(message = "BranchAddress cannot be null or empty")
    private String branchAddress;
}

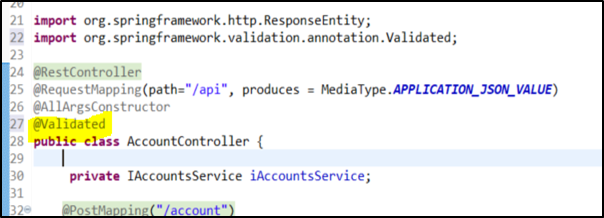

@Validated

This data is received in the AccountController class. Add the @Validated annotation.

import org.springframework.validation.annotation.Validated;

@RestController
@RequestMapping(path = "/api", produces = MediaType.APPLICATION_JSON_VALUE)
@AllArgsConstructor
@Validated
public class AccountController {

    private IAccountsService iAccountsService;

@Valid

Add the @Valid annotation for the POST and PUT mappings

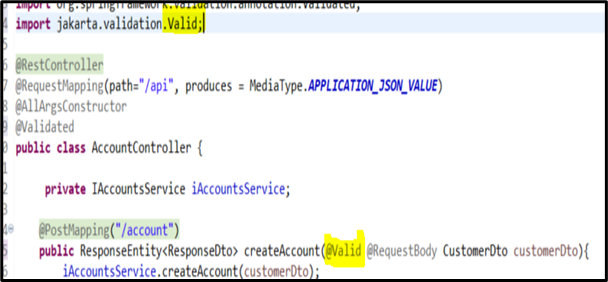

@Valid Annotation for POST: AccountsController.java

import jakarta.validation.Valid;

@RestController
@RequestMapping(path = "/api", produces = MediaType.APPLICATION_JSON_VALUE)
@AllArgsConstructor
@Validated
public class AccountController {

    private IAccountsService iAccountsService;

    @PostMapping("/accounts")
    public ResponseEntity<ResponseDto> createAccount(@Valid @RequestBody CustomerDto customerDto) {
        iAccountsService.createAccount(customerDto);

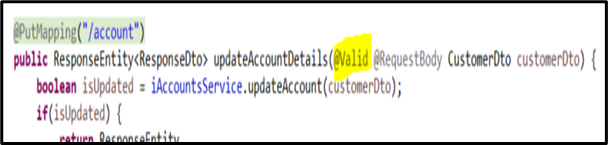

@Valid Annotation for PUT: AccountsController.java

@PutMapping("/accounts")
public ResponseEntity<ResponseDto> updateAccountDetails(@Valid @RequestBody CustomerDto customerDto) {
    boolean isUpdated = iAccountsService.updateAccount(customerDto);
    if (isUpdated) {

@Pattern

For the GET mapping we can validation the mobilenumber using the @Pattern @Pattern(regexp = "(^$|[0-9]{10})", message = "Mobile number must be 10 digits") And the same for the DELETE method

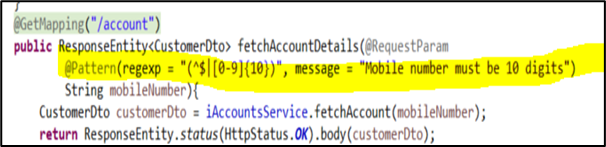

GET @Pattern: AccountController.java

@GetMapping()
    public ResponseEntity<CustomerDto> fetchAccountDetails(
            @RequestParam @Pattern(regexp = "(^$|[0-9]{10})", message = "Mobile number must be 10 digits") String mobileNumber) {
        CustomerDto customerDto = iAccountsService.fetchAccount(mobileNumber);
        return ResponseEntity.status(HttpStatus.OK).body(customerDto);
    }

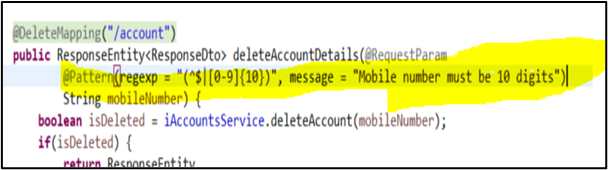

DELETE @Pattern: AccountController.java

@DeleteMapping()
public ResponseEntity<ResponseDto> deleteAccountDetails(@RequestParam
        @Pattern(regexp = "(^$|[0-9]{10})", message = "Mobile number must be 10 digits") String mobileNumber) {
    boolean isDeleted = iAccountsService.deleteAccount(mobileNumber);
    if (isDeleted) {

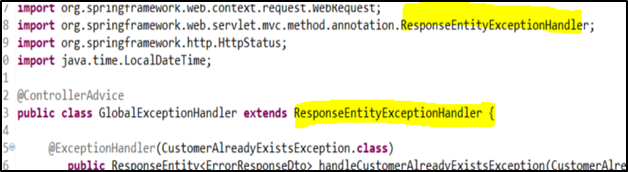

GlobalExceptionHandler extends ResponseEntityExceptionHandler

Now in the GlobalExceptionHandler we need to update the class so that is extends the ResponseEntityExceptionHandler and add a method handleMethodArgumentNotValid so that it knows how to return the error to the client.

GlobalExceptionHandler extends ResponseEntityExceptionHandler

import org.springframework.web.servlet.mvc.method.annotation.ResponseEntityExceptionHandler;
import org.springframework.http.HttpStatus;
import com.tus.accounts.dto.ErrorResponseDto;

@ControllerAdvice
public class GlobalExceptionHandler extends ResponseEntityExceptionHandler {
    @ExceptionHandler(Exception.class)
    public ResponseEntity<ErrorResponseDto> handleGlobalException(Exception exception, WebRequest webRequest) {

GlobalExceptionHandler handleMethodArgumentNotValid

Add the method handleMethodArgumentNotValid method. This will give process all validations. The map will hold all the validation errors that occurred in the input data.

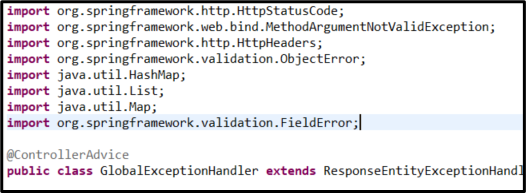

Import FieldError

import org.springframework.validation.FieldError;

@ControllerAdvice
public class GlobalExceptionHandler extends ResponseEntityExceptionHandler {

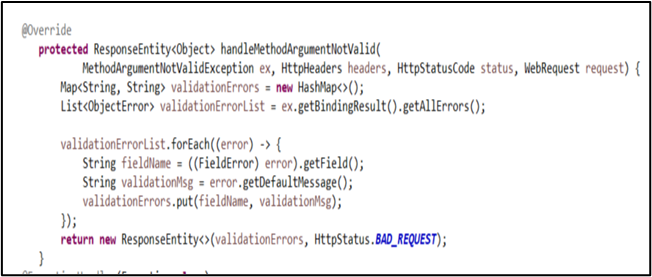

GlobalExceptionHandler handleMethodArgumentNotValid()

@Override
protected ResponseEntity<Object> handleMethodArgumentNotValid(MethodArgumentNotValidException ex,
        HttpHeaders headers, HttpStatusCode status, WebRequest request) {
    Map<String, String> validationErrors = new HashMap<>();
    List<ObjectError> validationErrorList = ex.getBindingResult().getAllErrors();

    validationErrorList.forEach((error) -> {
        String fieldName = ((FieldError) error).getField();
        String validationMsg = error.getDefaultMessage();
        validationErrors.put(fieldName, validationMsg);
    });

    return new ResponseEntity<>(validationErrors, HttpStatus.BAD_REQUEST);
}

Test email and mobile number

To test, go to Postman, remove @ from email, put mobile number as 9 or less digits and make name one character.

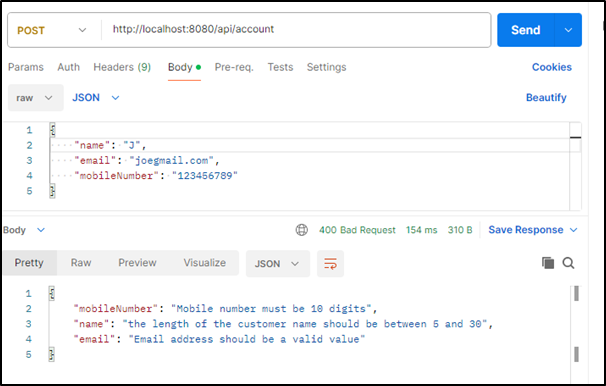

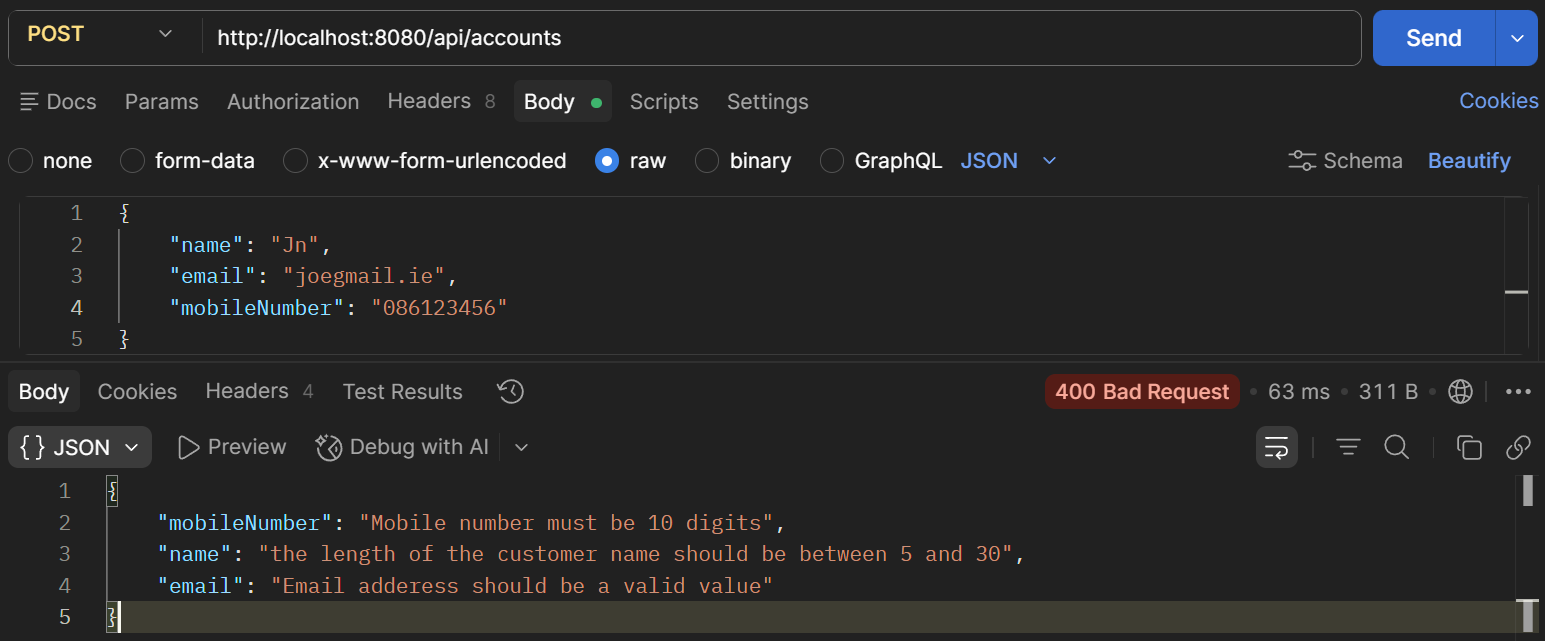

Figure 2. Test email.

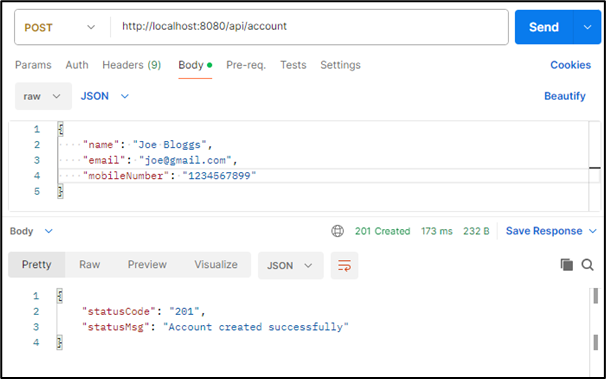

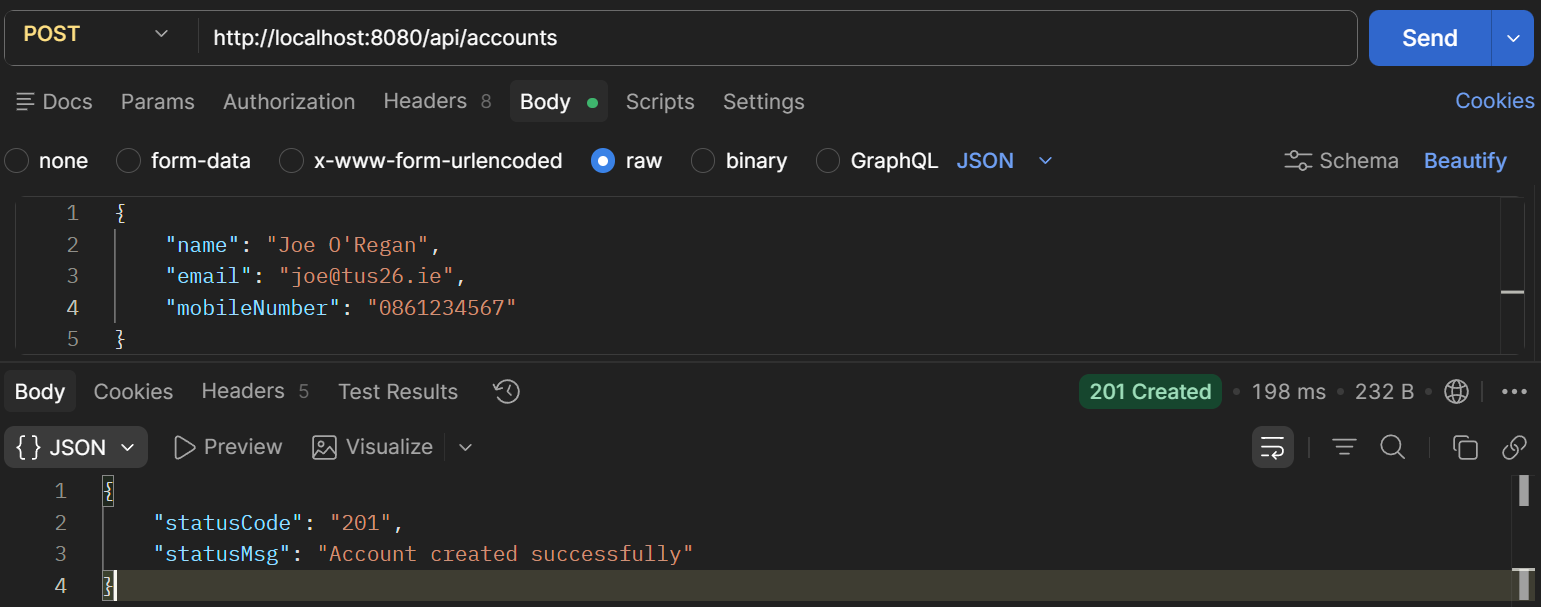

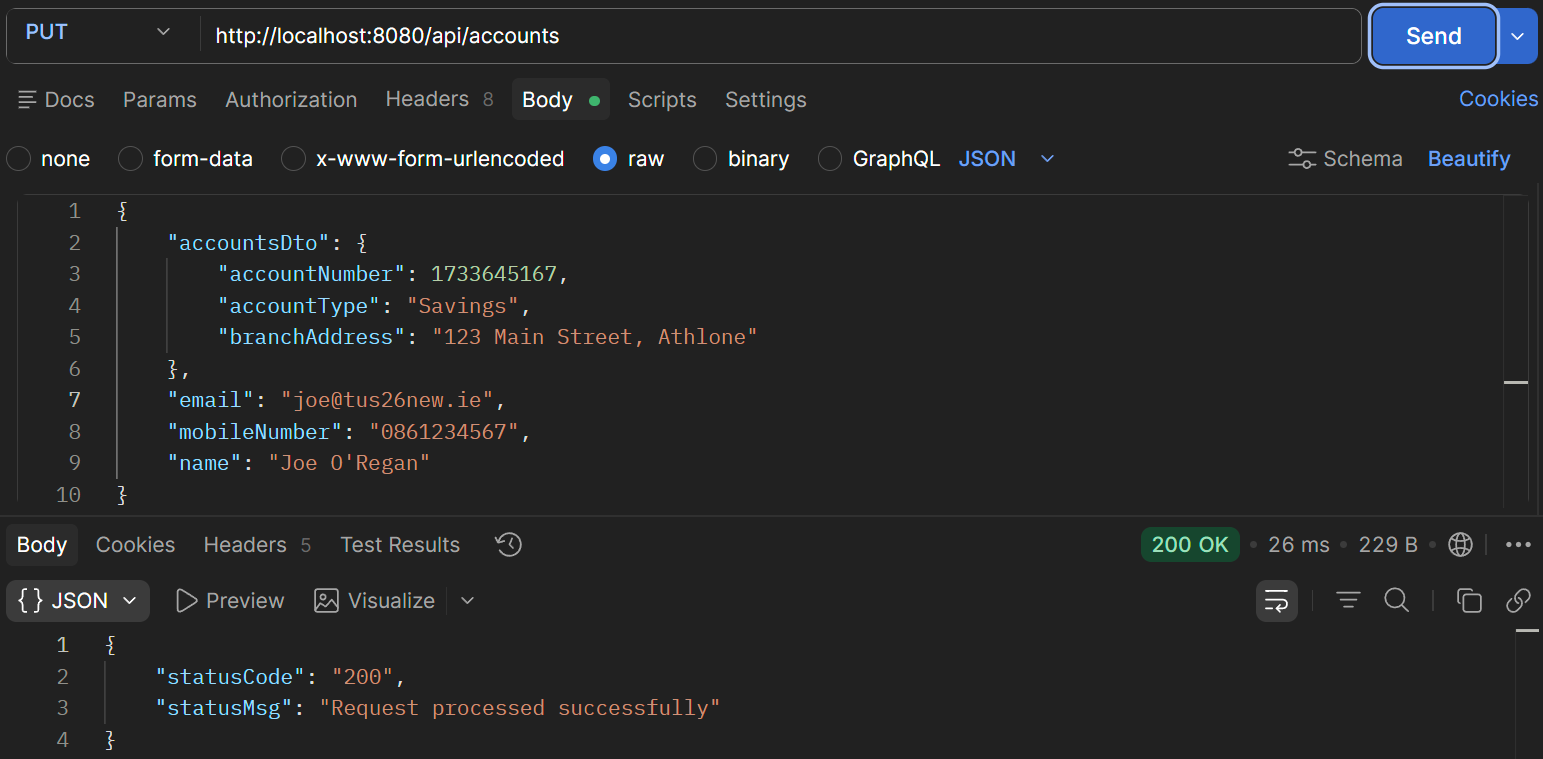

Figure 3. Test ok.

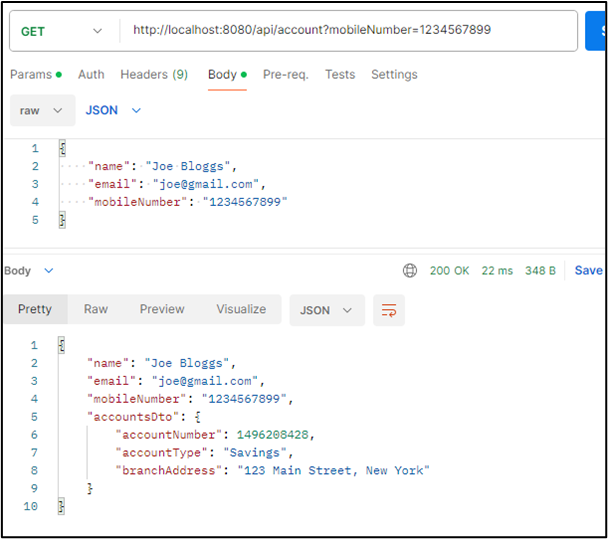

Test the validation on the GET mapping

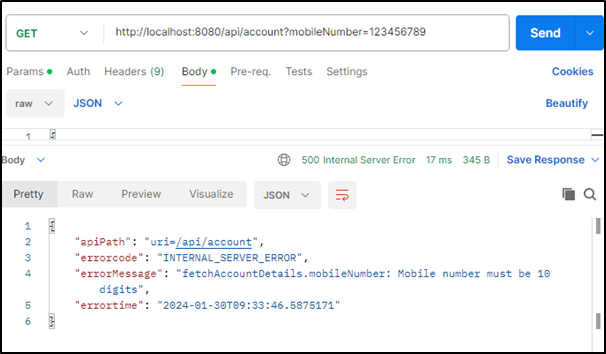

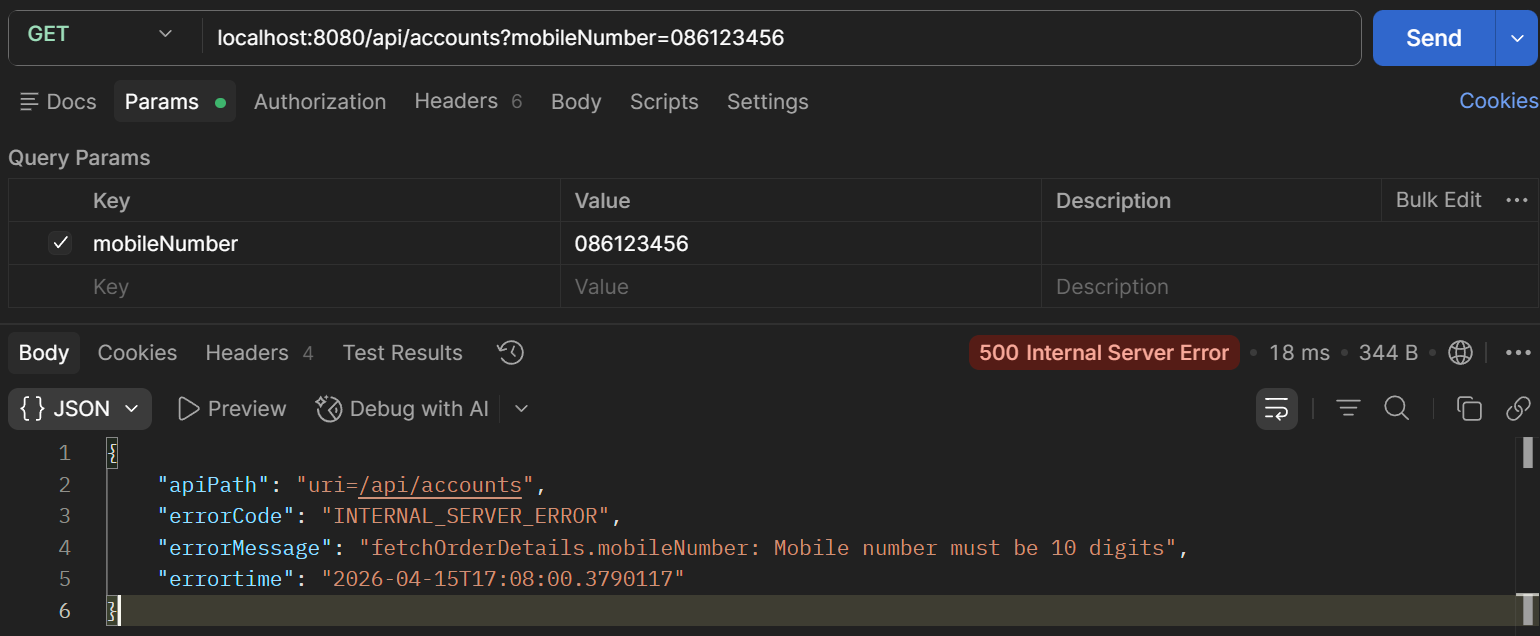

Figure 4. Test mobile number.

---

Part#3 Completing the audit metadata.

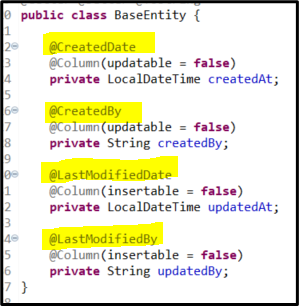

BaseEntity Annotation

These metadata columns can be updated automatically by Spring Data JPA The metadata columns are defined in the BaseEntity class. Add the annotations shown.

public class BaseEntity {

    @CreatedDate
    @Column(updatable = false)
    private LocalDateTime createdAt;

    @CreatedBy
    @Column(updatable = false)
    private String createdBy;

    @LastModifiedDate
    @Column(insertable = false)
    private LocalDateTime updatedAt;

    @LastModifiedBy
    @Column(insertable = false)
    private String updatedBy;
}

AuditAwareImpl

To add the logic about the user, add a new package and class

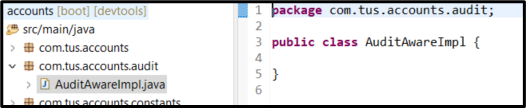

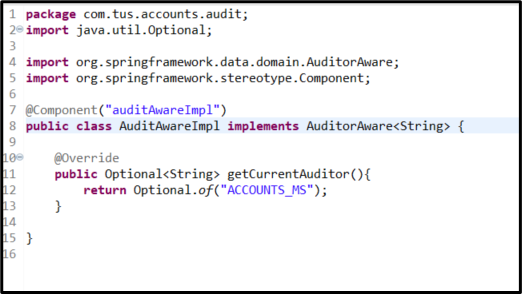

Figure 5. AuditAwareImpl.java

package com.tus.accounts.audit;

import java.util.Optional;

import org.springframework.data.domain.AuditorAware;
import org.springframework.stereotype.Component;

@Component("auditAwareImpl")
public class AuditAwareImpl implements AuditorAware<String> {

    @Override
    public Optional<String> getCurrentAuditor() {
        return Optional.of("ACCOUNTS_MS");
    }
}

BaseEntity Annotations

Now in the BaseEntity, make sure the two annotations are there

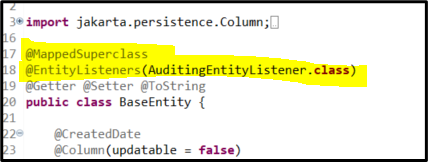

MappedSuperClass EntityListeners annotations: BaseEnity.java

import java.time.LocalDateTime;

@MappedSuperclass
@EntityListeners(AuditingEntityListener.class)
@Getter @Setter @ToString
public class BaseEntity {

    @CreatedDate
    @Column(updatable = false)

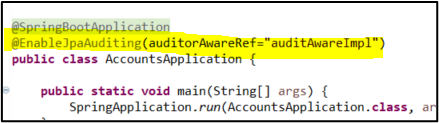

JpaAuditing Annotation

Also in the main class AccountsApplication add the annotation to enable JpaAuditing.

package com.tus.accounts;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.data.jpa.repository.config.EnableJpaAuditing;

@SpringBootApplication
@EnableJpaAuditing(auditorAwareRef = "auditAwareImpl")
public class AccountsApplication {

    public static void main(String[] args) {
        SpringApplication.run(AccountsApplication.class, args);
    }
}

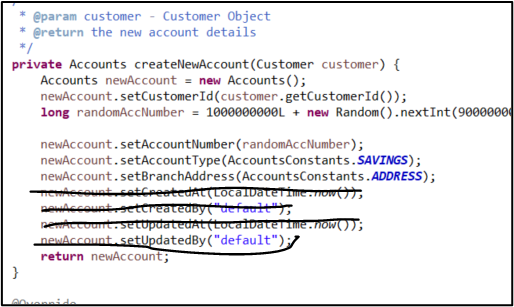

Delete Manually Created Fields

Now delete the code where we were manually creating the fields.

/**
 * @param customer - Customer Object
 * @return the new account details
 */
private Accounts createNewAccount(Customer customer) {
    Accounts newAccount = new Accounts();
    newAccount.setCustomerId(customer.getCustomerId());
    long randomAccNumber = 1000000000L + new Random().nextInt(900000000);

    newAccount.setAccountNumber(randomAccNumber);
    newAccount.setAccountType(AccountsConstants.SAVINGS);
    newAccount.setBranchAddress(AccountsConstants.ADDRESS);
    newAccount.setCreatedAt(LocalDateTime.now());
    newAccount.setCreatedBy("default");
    newAccount.setUpdatedAt(LocalDateTime.now());
    newAccount.setUpdatedBy("default");
    return newAccount;
}

/**
 * @param customer - Customer Object
 * @return the new account details
 */

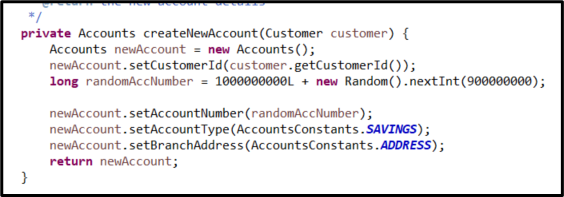

private Accounts createNewAccount(Customer customer) {
    Accounts newAccount = new Accounts();
    newAccount.setCustomerId(customer.getCustomerId());
    long randomAccNumber = 1000000000L + new Random().nextInt(900000000);

    newAccount.setAccountNumber(randomAccNumber);
    newAccount.setAccountType(AccountsConstants.SAVINGS);
    newAccount.setBranchAddress(AccountsConstants.ADDRESS);
    return newAccount;
}

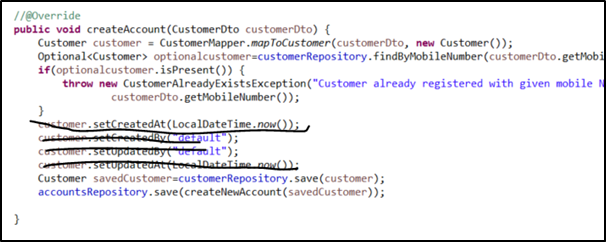

//@Override
public void createAccount(CustomerDto customerDto) {
    Customer customer = CustomerMapper.mapToCustomer(customerDto, new Customer());
    Optional<Customer> optionalcustomer = customerRepository.findByMobileNumber(customerDto.getMobileNumber());
    if (optionalcustomer.isPresent()) {
        throw new CustomerAlreadyExistsException(
                "Customer already registered with given mobile Number " + customerDto.getMobileNumber());
    }
    customer.setCreatedAt(LocalDateTime.now());
    customer.setCreatedBy("default");
    customer.setUpdatedAt(LocalDateTime.now());
    customer.setUpdatedBy("default");
    Customer savedCustomer = customerRepository.save(customer);
    accountsRepository.save(createNewAccount(savedCustomer));
}

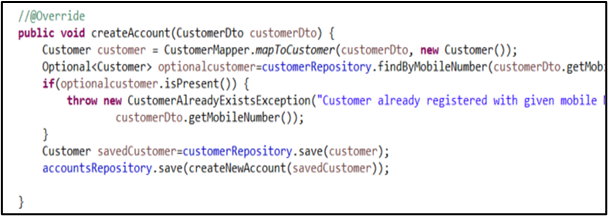

//@Override
public void createAccount(CustomerDto customerDto) {
    Customer customer = CustomerMapper.mapToCustomer(customerDto, new Customer());
    Optional<Customer> optionalcustomer = customerRepository.findByMobileNumber(customerDto.getMobileNumber());
    if (optionalcustomer.isPresent()) {
        throw new CustomerAlreadyExistsException(
                "Customer already registered with given mobile Number " + customerDto.getMobileNumber());
    }
    Customer savedCustomer = customerRepository.save(customer);
    accountsRepository.save(createNewAccount(savedCustomer));
}

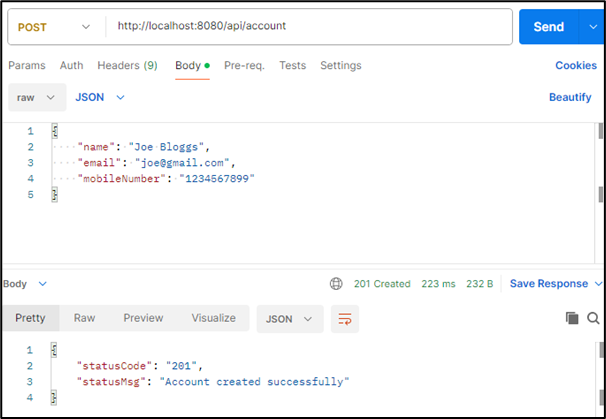

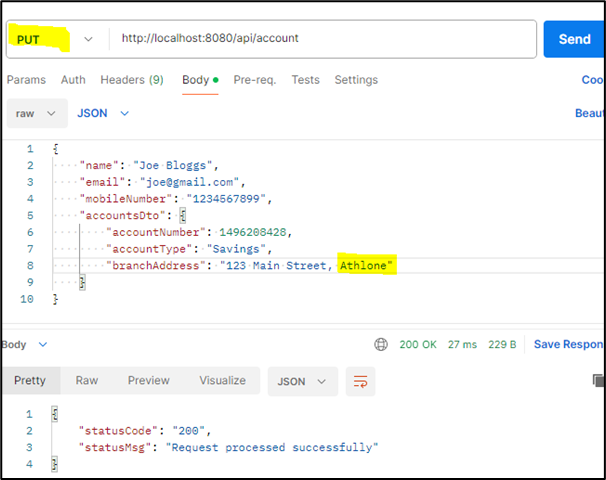

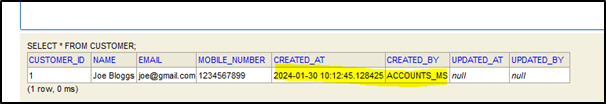

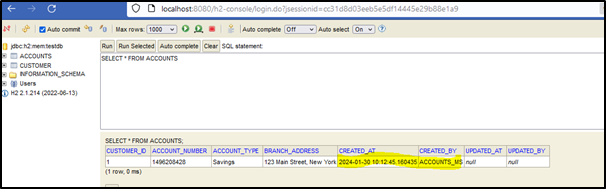

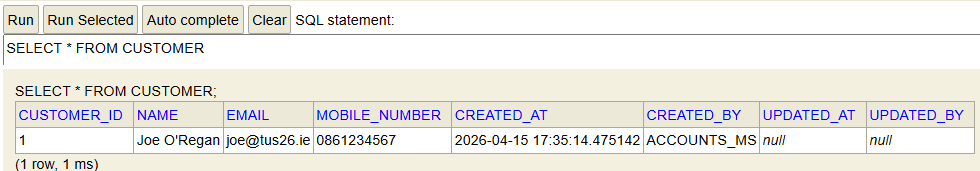

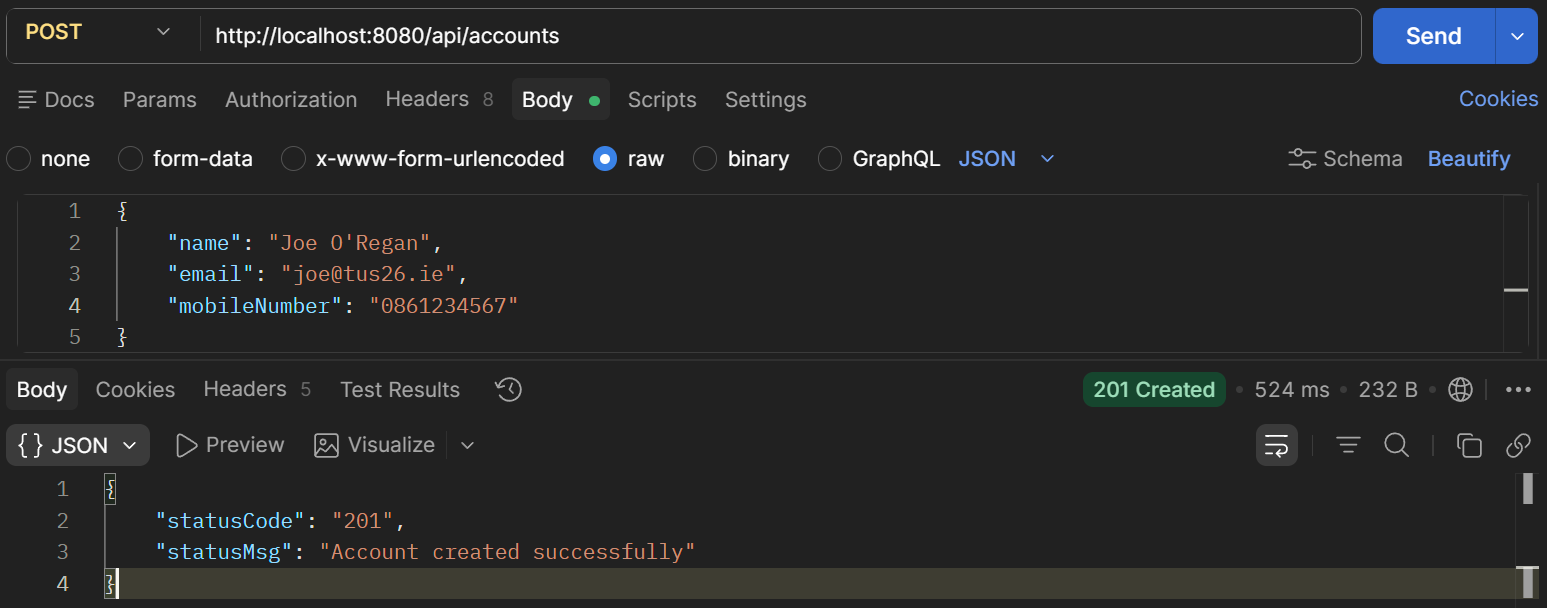

Test in Postman

Go to Postman and test

Figure 6. Test Postman.

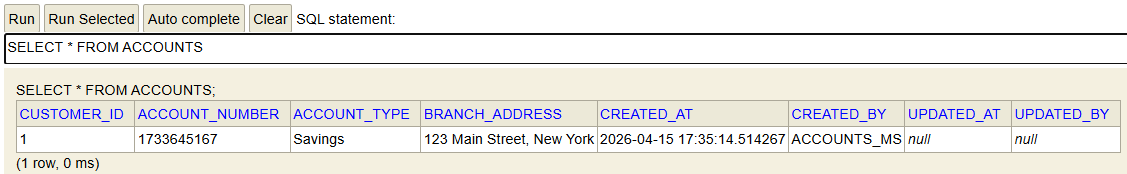

Figure 7. H2 Console.

Figure 8. H2 Console.

Check the update mapping

First fetch the data

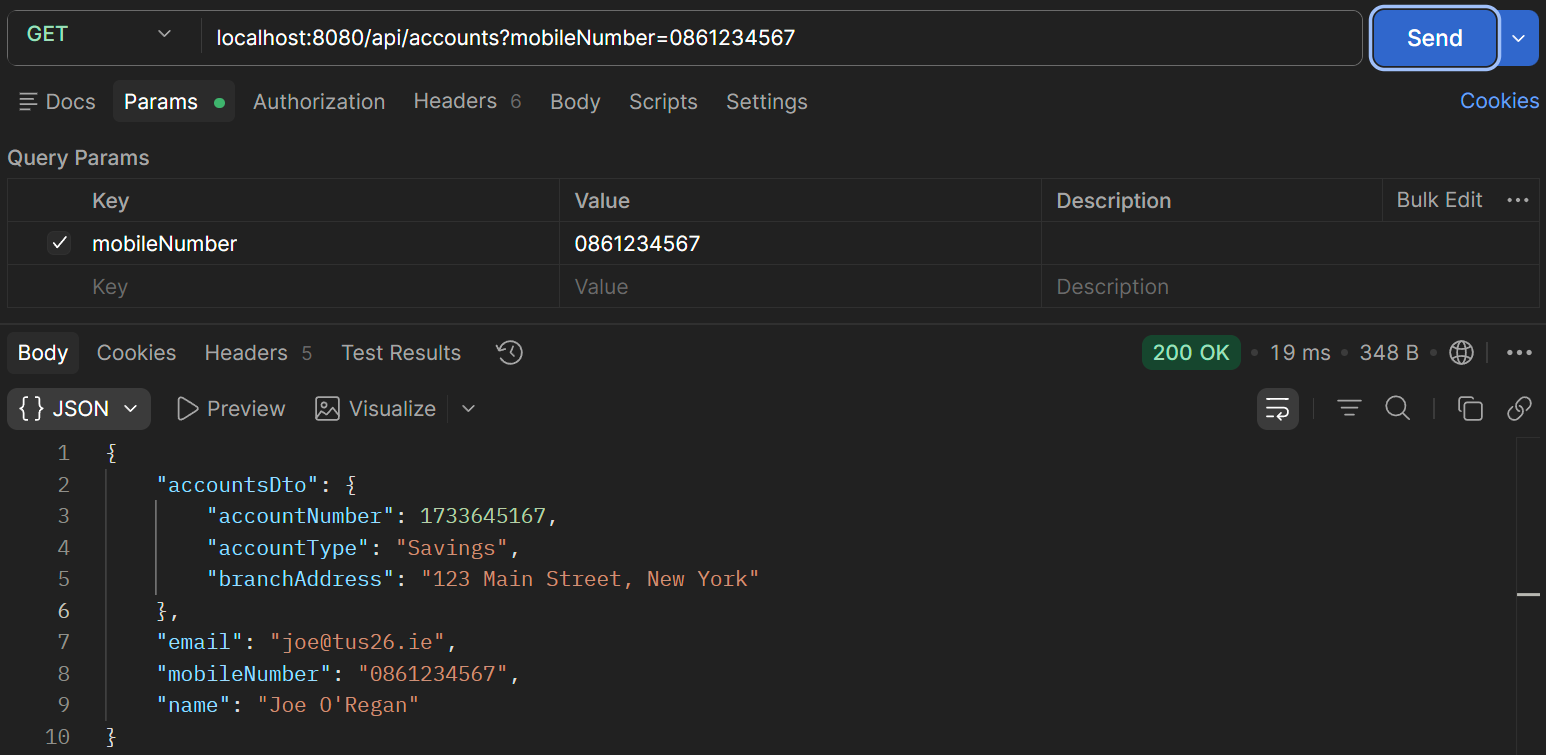

Figure 9. Fetch account.

Now update a field e.g. Address

Figure 10. PUT udpate address.

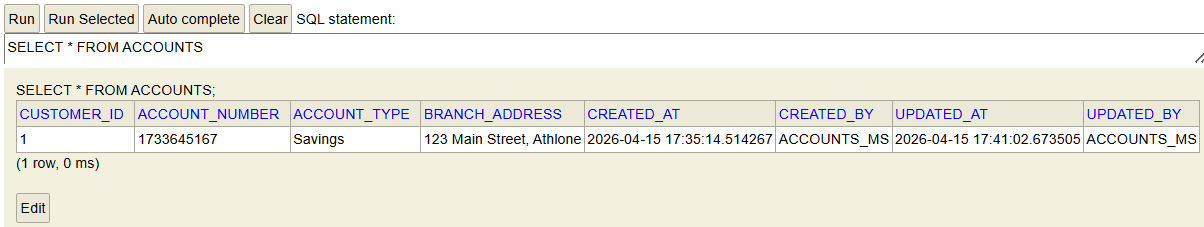

Figure 11. Check in table.
