Lab 15

Steps and Files

  1. Config Server
  2. @EnableConfigServer
    • ConfigserverApplication.java
  3. application.yml
    • application.yml
  4. YAML Config Files
  5. Test

Lab#15 Getting started with SpringCloud Config

Some parameters can be read with Springboot alone. However for anymore than trivial cases a Spring Cloud Config server is required. Using Spring Cloud Config, parameters can be read from the classpath, the file system or a git repo.

In this lab we will be reading configurations from classpath location.

1. Config Server

Step#1 Create a new project with artefact name “configserver”. Add configserver and actuator as dependencies.

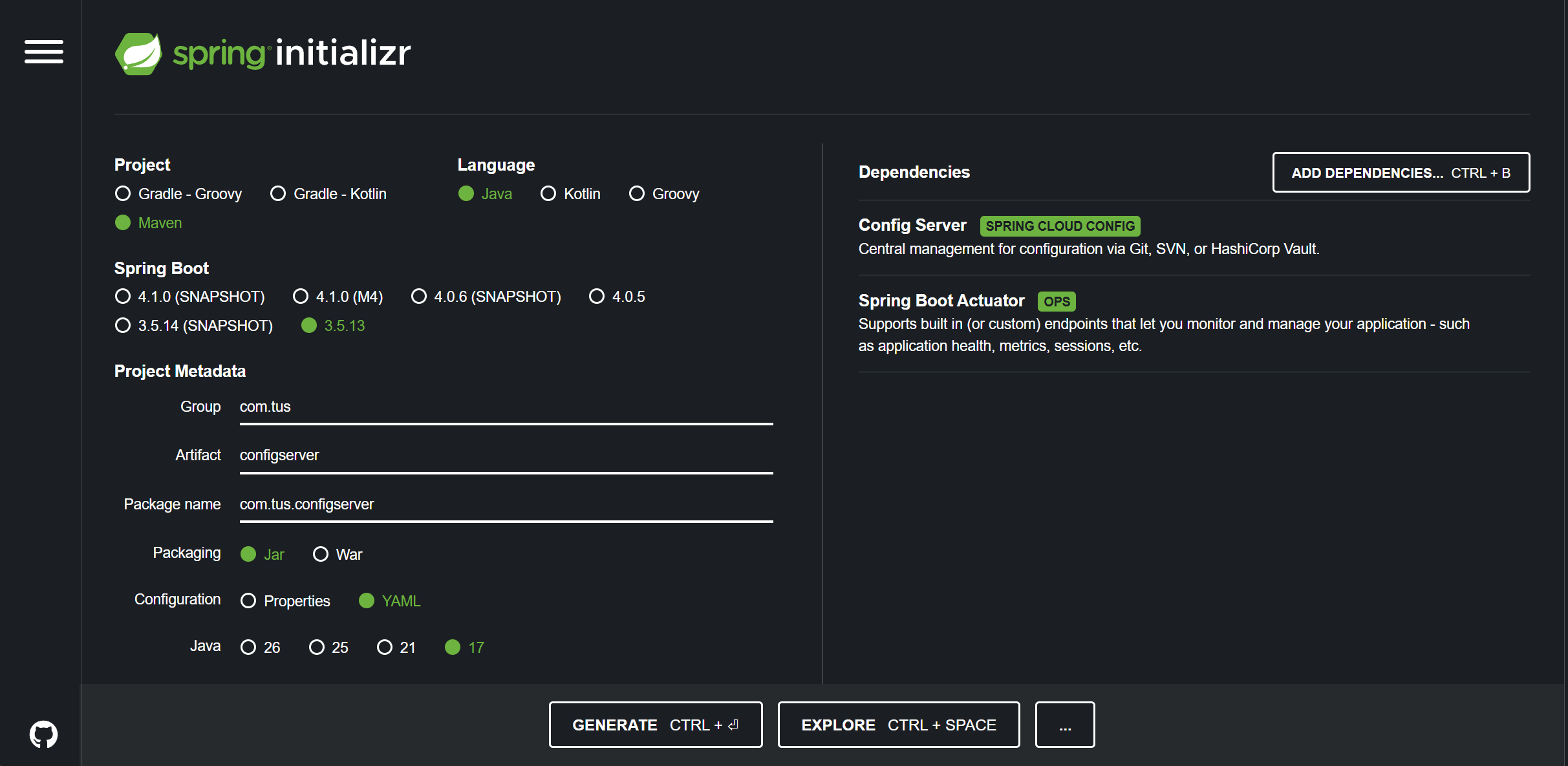

New Project

Figure 1. New Project

2. @EnableConfigServer

Step#2 Add the @EnableConfigServer annotation to the Application class.

ConfigserverApplication.java
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
package com.tus.configserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.config.server.EnableConfigServer;

@SpringBootApplication
@EnableConfigServer
public class ConfigserverApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConfigserverApplication.class, args);
    }

}

3. application.yml

Step#3 Update the application.properties for the configserver.

application.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
spring:
  application:
    name: configserver
  profiles:
    active: native
  cloud:
    config:
      server:
        native:
          search-locations: classpath:/config

server:
  port: 8071

4. YAML Config Files

Step#4 Add .yml files for all the microservices to the configserver, named as shown in a folder called config.

Accounts YAML

accounts.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "3.0"
accounts:
  message: "Welcome to accounts related local APIs"
  contactDetails:
    name: "Joe Bloggs - Developer"
    email: "joe@tus.ie"
  onCallSupport:
    - (086) 555-1234
    - (086) 523-1345
accounts-qa.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "2.0"
accounts:
  message: "Welcome to accounts related QA APIs"
  contactDetails:
    name: "Jane Bloggs - QA TESTER"
    email: "jane@tus.ie"
  onCallSupport:
    - (090) 555-1234
    - (090) 523-1345
accounts-prod.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "1.0"
accounts:
  message: "Welcome to accounts related prod APIs"
  contactDetails:
    name: "John Bloggs - Prod Support"
    email: "john@tus.ie"
  onCallSupport:
    - (086) 555-1234
    - (087) 523-1345

Cards YAML

cards.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "3.1"
cards:
  message: "Welcome to cards related local APIs"
  contactDetails:
    name: "Joe Bloggs - Cards Developer"
    email: "joe@cards.ie"
  onCallSupport:
    - (086) 555-1234
    - (086) 523-1345
cards-qa.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "2.1"
cards:
  message: "Welcome to TUS cards related QA APIs"
  contactDetails:
    name: "John Murphy - Product Owner"
    email: "john@cards.ie"
  onCallSupport:
    - (086) 656-8709
    - (087) 342-0956
cards-prod.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "1.1"
cards:
  message: "Welcome to TUS cards related prod APIs"
  contactDetails:
    name: "John Murphy - Product Owner"
    email: "john@tus.ie"
  onCallSupport:
    - (086) 656-8709
    - (087) 342-0956

Loans YAML

loans.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "3.2"
loans:
  message: "Welcome to loans related local APIs"
  contactDetails:
    name: "Anna Bloggs - Loans Developer"
    email: "anna@loans.ie"
  onCallSupport:
    - (452) 456-2176
    - (452) 764-8934
loans-qa.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "2.2"
loans:
  message: "Welcome to TUS loans related QA APIs"
  contactDetails:
    name: "John Murphy - Loans Owner"
    email: "john@loans.ie"
  onCallSupport:
    - (086) 656-8709
    - (087) 342-0956
loans-prod.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
build:
  version: "1.2"
loans:
  message: "Welcome to TUS loans related prod APIs"
  contactDetails:
    name: "John Murphy - Loans Owner"
    email: "john@loans.ie"
  onCallSupport:
    - (086) 656-8709
    - (087) 342-0956

These .yml files only contain the profile specific attributes.

5. Test

Step#5 Run the server and test.

Note: the default values are also returned

Accounts

http://localhost:8071/accounts/prod

GET /accounts/prod

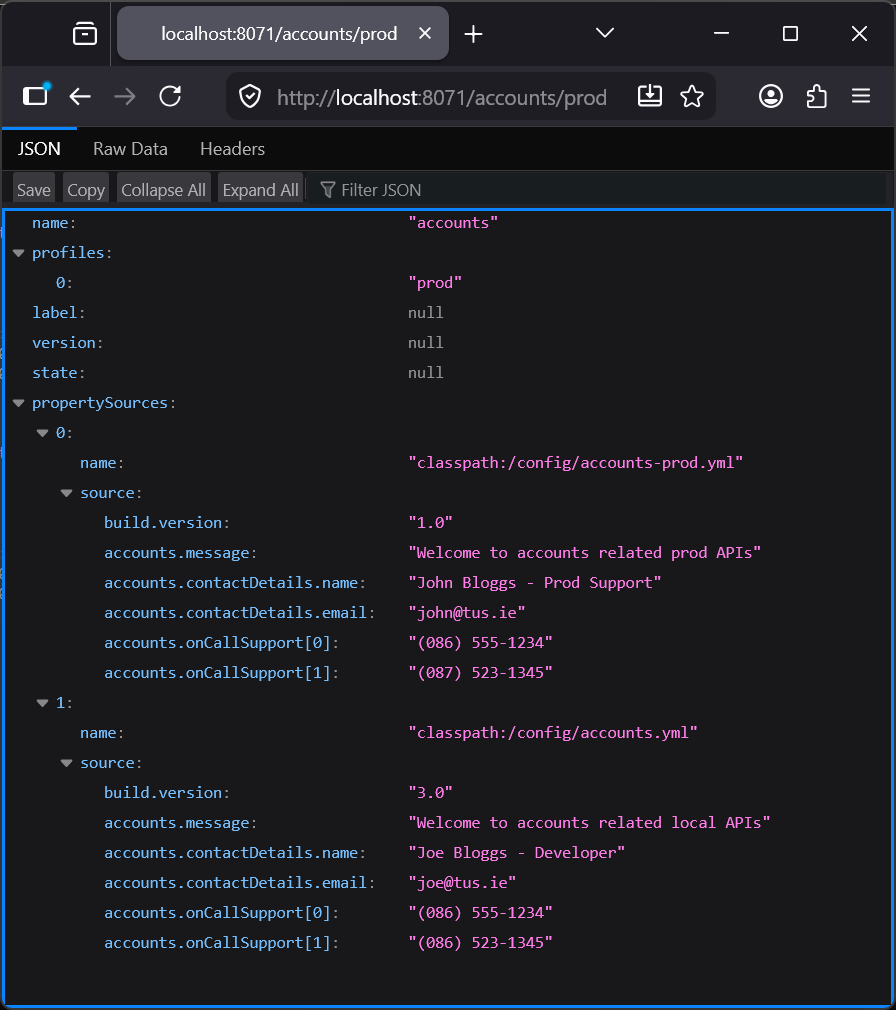

Figure 2. GET http://localhost:8071/accounts/prod

http://localhost:8071/accounts/qa

GET /accounts/qa

Figure 3. GET http://localhost:8071/accounts/qa

Cards

http://localhost:8071/cards/prod

GET /cards/prod

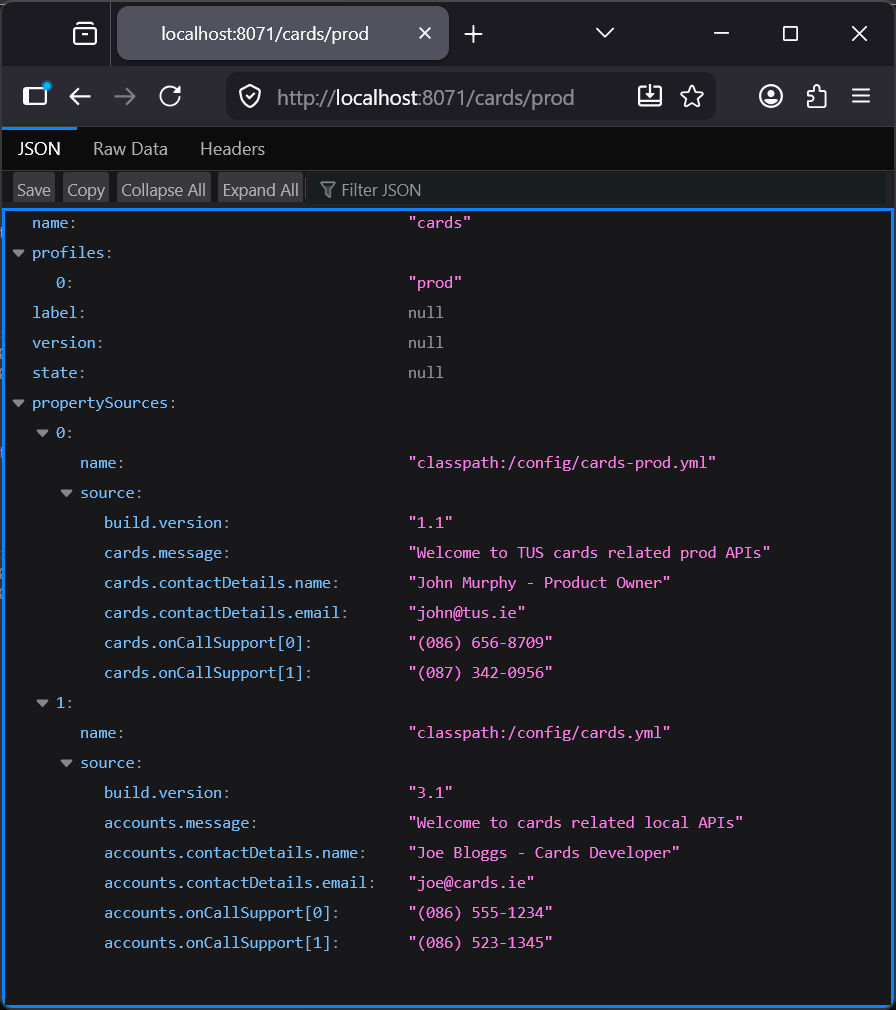

Figure 4. GET http://localhost:8071/cards/prod

http://localhost:8071/cards/default

GET /cards/default

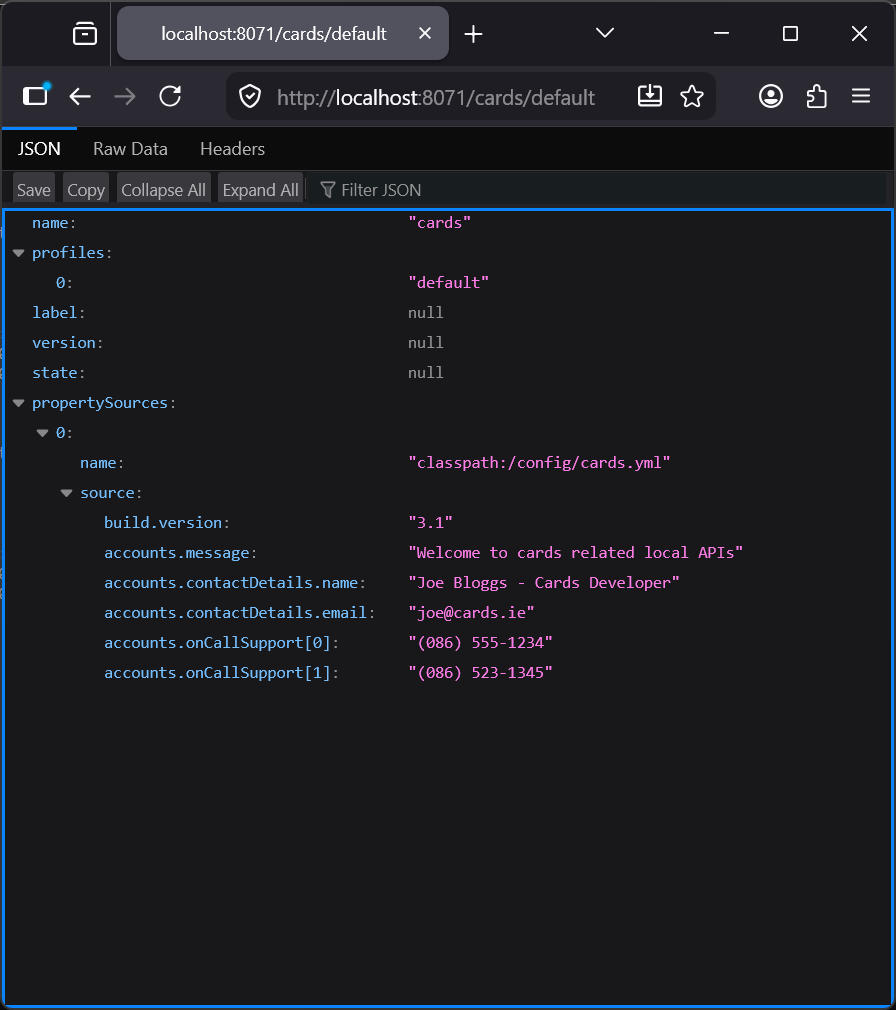

Figure 5. GET http://localhost:8071/cards/default

Loans

http://localhost:8071/loans/prod

GET /loans/prod

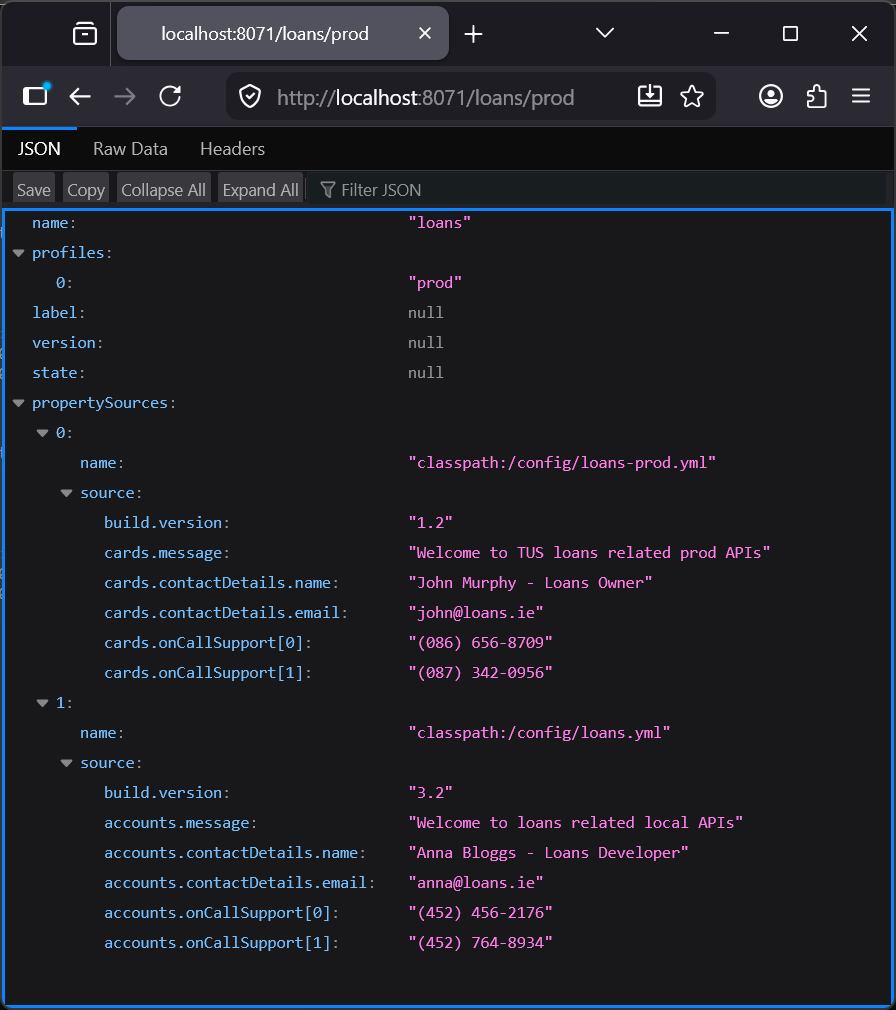

Figure 6. GET http://localhost:8071/loans/prod
